World's first Small-sized, Low-power “Smart Meter Radio Device” compliant with IEEE 802.15.4g/4e standards for Japan’s new 920 MHz band allocation

  • Print this page
April 5, 2012

The National Institute of Information and Communications Technology (NICT, President: Dr. Hideo Miyahara) has developed the world's first “smart meter radio device” compliant to the finalized IEEE 802.15.4g/4e standards in IEEE 802 committee. The developed radio device supports both PHY (newly defining 920 MHz band allocation in Japan) and MAC (finalizing low-energy protocols assuming several-year operation with only battery) specifications in the final drafts for those standards. The radio device also realized highly integrated MAC circuit, newly developed small-sized and low-power PHY circuit, and is equipped with flexible interface modules suitable for a variety of external meters and sensors. Furthermore, this radio device has obtained technical standards conformity certification for 920 MHz, which enables practical operation of the device in every region of Japan.

Background

Recently, reducing excessive energy consumption by controlling meters of electricity, gas and water in homes and buildings has been of great importance to environmentally-friendly technologies. NICT has conducted research and development on the smart meter system with radio communication technologies that effectively and surely realizes automatic and autonomous control, data reading and monitoring on each meter. Such NICT’s efforts have been reflected on standardization activities in IEEE 802 committee and been successfully adopted in IEEE 802.15.4g/4e drafts.

In Japan, “950 MHz band” allocation for RFID system was originally considered to be suitable for the allocation of smart meter utilities. However, MIC (Ministry of Internal affairs and Communications, Japan) officially announced “920 MHz band” allocation for smart meter usage in Jan. 2012 for the benefit of the international cooperation and competitiveness. Accordingly, NICT, domestic users and manufacturer companies have submitted a unified proposal for clear and effective 920 MHz utilization to IEEE 802.15.4g/4e task groups. As a result, those task groups have finalized IEEE 802.15.4g/4e drafts (to be finalized as standards in Mar. 2012) defining such “920 MHz band” allocation. Although significance of standardization and realization of the smart meter system is confirmed with the establishment of "Wi-SUN alliance" in Jan. 2012, any radio device compliant to such finalized IEEE 802.15.4g/4e standards has not been developed yet.

New Achievements
The developed radio device for the smart meter
The developed radio device for the smart meter

This time, NICT has developed a radio device surely compliant to the radio specifications in the finalized IEEE 802 standards where NICT's proposals to IEEE 802.15.4g/4e task groups are well included, and it further supports operations in newly allocated “920 MHz band” in Japan. Moreover, the radio device reduces its size to one-third and its power consumption to one-tenth compared with the one previously developed by NICT, thanks to its highly integrated MAC circuit and small-sized and low-power PHY circuit. Also, this radio device has obtained technical standards conformity certification for 920 MHz, which enables practical operation across the country.

One of the remarkable points is low-power multi-hop transmission management capability that automatically and autonomously constructs data collection/circulation topology among meters when they are turned on. Then, any pair of communicating devices synchronizes with each other by employing intermittent and short periods for data receiving/standing by and transmitting each of which is less than one-hundredth shorter than the remaining periods for sleeping. Therefore, these devices can achieve low-power performance implying possibility of long-lived battery-powered operations for several years without battery replacement. Moreover, these devices have flexible interface modules suitable for a variety of external meters and sensors.

Future Prospects

The standardization in IEEE 802 committee is to be completed in Mar. 2012. NICT is going to create a safe and relieved society by ICT, with the standardization basements by way of Wi-SUN alliance. NICT is also seeking an opportunity of this device’s technology transfer.

Outline of the assumed system

(a) Gas / Electricity / Water meter application
(a) Gas / Electricity / Water meter application

(b) Dosimeter application
(b) Dosimeter application

Fig. 1 Usage image of smart meter radio system

Fig. 1 shows a system image of SUN.

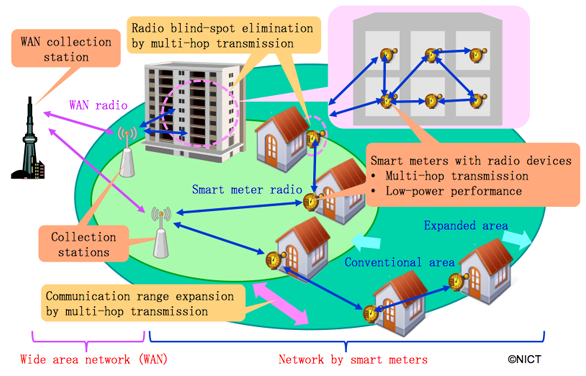

In Fig. 1(a), a radio device equipping gas/ electricity/ water meter is allocated to each home and transmits the timely data read on the meter. Such meter data are collected to the collection/ control station in a SUN service area that is equivalent to an apartment building or a portion of residential area with several houses. As in the figure, multi-hop transmission among radio devices guarantees the required communication range and eliminates radio blind spots caused by obstacles. The collected data by SUN can be relayed in the wide area networks (WAN) and further collected in the collection/ control station in the WAN.

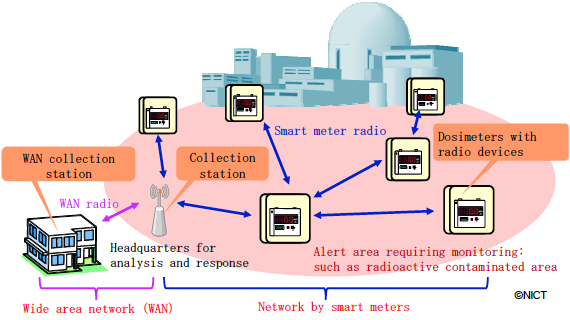

On the other hand, Fig. 1(b) shows an application image where the smart meters as dosimeters or climate sensors have conducted monitored data collection by exploiting radio links among meters. In this case, multi-hop transmission capability is effectively utilized in order to conduct operations of distributed meters in multi-point, and low-power performance capability enables continuous and long-term monitoring.

The developed radio device for the smart meter

Fig. 2 The developed radio device for the smart meter

Fig. 2 The developed radio device for the smart meter

Table 1 Specifications of the developed device

Size 84 mm×70 mm×20 mm (excluding antenna)
Frequency band 926.3 ~ 927.9 MHz
Modulation scheme Filtered-2FSK
Data rate 50, 100, 200 kbps
PHY payload length 0 ~ 2047 octets (1 octet = 8 bits)
Access control scheme Contention access in the active period
Routing scheme Routing to the root in the tree shaped topology

Fig. 3 Access control in the developed device

Fig. 3 Access control in the developed device

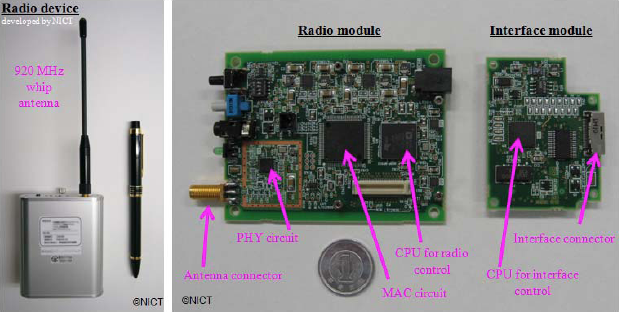

Fig. 2 shows the developed radio device for the smart meter and Table 1 shows its specifications.

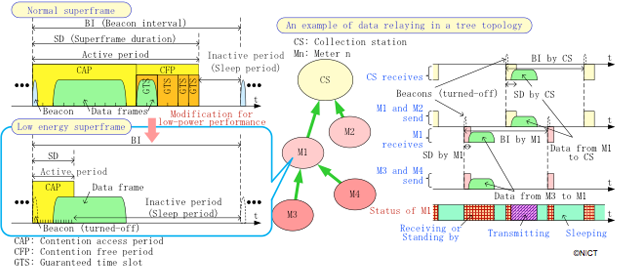

Fig. 3 shows a concept of access control employed in the developed radio device. The beacon signal is usually turned off in order to avoid excessive power consumption owing to periodical transmission and it is transmitted only when requested. There are two types of periods; the active period and the sleep period as in Fig. 3. Only the active period includes receiving or standing by state of the device. In contrast, the sleep period indicates sleeping state of the device except for the case the device continuously receive a data frame from the last active period as in Fig. 3, which can decrease the average power consumption by exploiting the existence of sleep period. The developed radio device automatically and autonomously constructs a tree topology as in Fig. 3 after turned-on, then conducts an effective collection of data relaying as depicted in Fig. 3.
